油管短接，是指短于R1長度的油管。其長度通常有0.3米--6米。及國外習慣用的1FT-20FT等。基本規格，鋼級，使用環境都和普通油管一樣。管體執行API Spec-5CT第九版。螺紋加工執行API Spec-5B-2008。
種類分為：短接常見的分為普通短接，雙公短接，整體加厚短接。

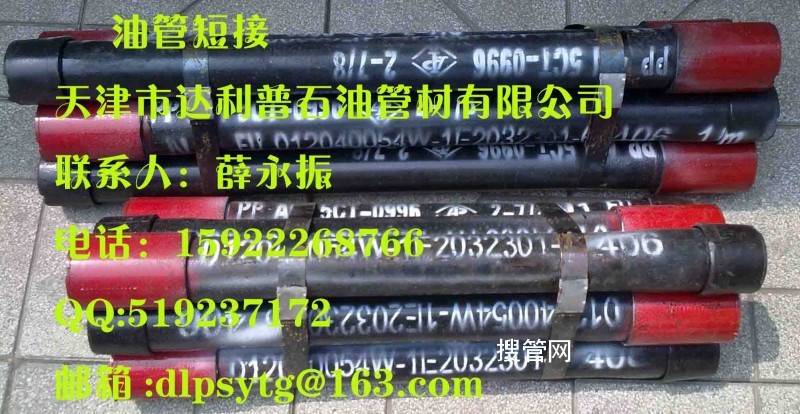

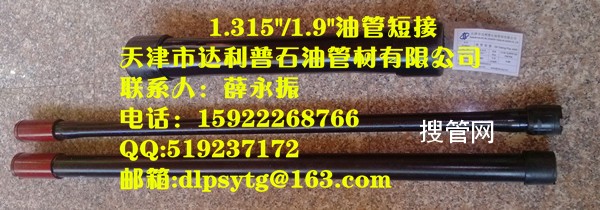

油管短接/套管短節
標準：API SPEC 5CT、API SPEC 5B、ISO 11960
尺寸：1.9" to 4-1/2"
鋼級： J55, K55, N80-1, N80-Q, L80, C90, P110;
端部加工形式：STC,LTC,BTC,EUE,NUE，IJ,N-VAM,VAM TOP,HYD CS PH6;
長度：2FT-20FT
用途：鉆井，采油，壓裂
Tubing and casing pup joint
1. Size: 1.9 inch to 20inch;
2. End Type: NU, EU, STC, BTC, LTC,IJ;
3. Steel Grade: J55, K55, N80, L80, P110;
4. Specification: API Spec5CT and 5B
5. Dimensions and their tolerances of tubing round-thread as per API spec 5B
6.Protection of Thread: Thread protector
7.Our tubing and casing pup joint conform to API 5CT standard, lengths 2’. 4’.6’.8’10’ and we can make different lengths and sizes according to the customer’s requests.
